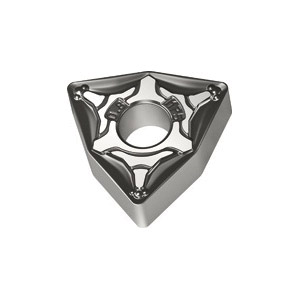

Walter 6059952 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG432-MP5 WPP20S, WNMG Insert, Material Grade: P, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP20S
Price$15.62
Item #WAU6059952
BrandWalter
ManufacturerWalter
Mfr. Model #6059952
Ship Weight (lbs.)0
UnitEA
AvailabilityCall for Availability
Quantity
Product Features
- • Universal geometry for steel materials
• Reinforced chipbreaker blades
• Extremely wide range of applications
• Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
• Mechanical post-treatment - unique residual stress rate, increased process reliability
• Large, universal chip breaking area and longer tool life for ISO P geometries
• Ground seating surface after coating for improved process reliability when working with interrupted cuts
• Silver flank face indicator layer for extremely easy wear detection
• Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
• Extremely smooth rake face for excellent tribochemical wear resistance
Description
Walter Turning Insert, Series: Tiger-tec® Silver, WNMG Insert, 432 Insert, Trigon, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Negative Rake, MP5 Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WPP20S, ANSI Code: WNMG432-MP5 WPP20S, ISO Code: WNMG080408-MP5 WPP20S, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiCN Coated, Material Grade: P, For Use On: Steel
