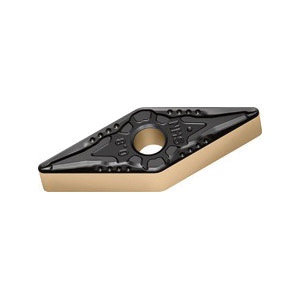

Walter 5908284 Tiger-tec® Silver Turning Insert, ANSI Code: VNMG332-NMS WSM10, VNMG Insert, Material Grade: M, S, 332 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM10
Price$25.66
Item #WAU5908284
BrandWalter
ManufacturerWalter
Mfr. Model #5908284
Ship Weight (lbs.)0.02
UnitEA
AvailabilityCall for Availability
Product Features
- • Medium machining, especially for high temperature alloys (Ni, Co, Fe-based alloys)
• Sharp cutting edge design
• Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
• Mechanical post-treatment - unique residual stress rate, increased process reliability
• Large, universal chip breaking area and longer tool life for ISO P geometries
• Ground seating surface after coating for improved process reliability when working with interrupted cuts
• Silver flank face indicator layer for extremely easy wear detection
• Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
• Extremely smooth rake face for excellent tribochemical wear resistance
Description
Walter Turning Insert, Series: Tiger-tec® Silver, VNMG Insert, 332 Insert, Rhombic, 2.2 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Negative Rake, NMS Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: WSM10, ANSI Code: VNMG332-NMS WSM10, ISO Code: VNMG160408-NMS WSM10, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+Al2O3 (ZrCN) Coated, Material Grade: M, S, For Use On: Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting
