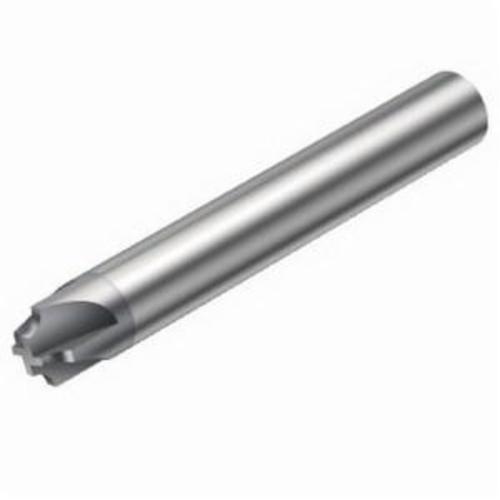

Sandvik Coromant 6259917 CoroMill® Plura End Mill With Quarter Circle Profile, 0.236 in Dia Cutter, 0.157 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Orig$318.25
Sale$190.95
Item #SVK69600
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #6259917
Ship Weight (lbs.)0.01
UnitEA
Items Left in Stock3
AvailabilityIn-Stock With Limited Quantity
Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • 1620 manufacturer grade
• 4 face effective cutt edge
• Without coolant entry
• 4 mm profile radius
• No coolant exit
• 14 mm Dia maximum cutting
• SFW feed direction
• 1 deg radial rake
• 0 deg axial rake
• 4 mm L usable
• 38 mm overhang
• 20 life cycle state
• Optimized grades for all materials and conditions
• Straight, conical, with and without chip-dividing cutting edge tool shapes
• PCD tipped end mills with internal coolant
H6 connection diameter tolerance
• H, K, M, N, P, S material grade
• 1U000-XA tool style
• 4 peripheral effective cutt edge
Description
Sandvik Coromant End Mill, Series: CoroMill® Plura, 0.236 in Cutter Dia, 3.267 in Overall Length, 0.157 in Length of Cut, 4 Flutes, 0.551 in Shank Dia, Right Hand Cutting, Cylindrical Shank, ANSI Code: 1U000-0600-400-XA 1620, ISO Code: 1U000-0600-400-XA 1620, Solid Carbide, PVD Coated
