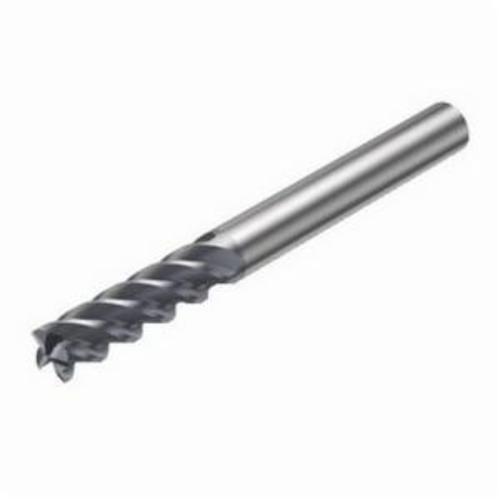

Sandvik Coromant 6259906 CoroMill® Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.968 in Length of Cut, 5 Flutes, 0.629 in Dia Shank, 4.527 in OAL, PVD Coated
Orig$366.27
Sale$219.76
Item #SVK69589
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #6259906
Ship Weight (lbs.)0.7
UnitEA
Items Left in Stock5
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • 1620 manufacturer grade
• 0.2 mm maximum working engagement
• 1 maximum working engagement ratio
• Center cutting capability
• 10.7 mm Dia core at face
• 0.15 mm W corner chamfer
• XL cutting length
• Without coolant entry
• No coolant exit
• 15.7 mm Dia cutting face contact
• SFW (EFW) feed direction
• Right helix flute hand
• 10.5 deg radial rake
• 13.5 deg axial rake
• 50 mm L usable
4 maximum regrinds
• 67 mm overhang
• 90 deg y-axis rot
• 4 deg ramping
• 80000 r/min
Description
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill® Plura, 0.629 in Diameter Cutter, 4.527 in Overall Length, 1.968 in Length of Cut, 5 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: 1P360-1600-XA 1620, ISO Code: 1P360-1600-XA 1620, Solid Carbide, PVD Coated
