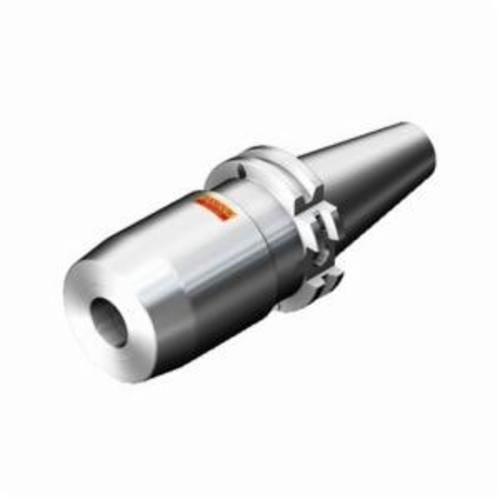

Sandvik Coromant 6532917 CoroChuck™ 930 Heavy Duty High Precision Hydraulic Tool Holder and Chuck, BIG-PLUS CAT-V Shank, VB50 Connection, 0.787 in Dia Hole, 2.165 in Dia Nose, 3.267 in Projection
Price$1,232.04
Item #SVK6532917
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #6532917
Ship Weight (lbs.)0
UnitEA
AvailabilityCall for Availability
Quantity
Product Features
- • Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
• Easy handling with torque wrench used for secure clamping
• The machine side coupling is ground as the last operation to guarantee the highest demands on precision
• Precision run out <4 umm (157 uminch) at 2.5XDC
• High precision repetition
• Balancing according to DIN 69888
• Clamping length can be adjusted with an adjustment screw
• High metal removal rate provides increased productivity
• Secure process and safe machining
• Quick tool change and setup
• Enhanced surface finish and increased tool life
• Close hole tolerance
Description
Sandvik Coromant Hydraulic Tool Holder and Chuck, Heavy Duty High Precision, Series: CoroChuck™ 930, VB50, BIG-PLUS CAT-V Shank, CAT-V50 Taper, 0.787 in Hole Dia, 2.165 in Nose Dia, 3.267 in Projection, 1.614 in Clamping Depth, 7.275 in Overall Length, System Size Machine Side: VB50, ANSI Code: 930-VB50-HD-20-083, ISO Code: 930-VB50-HD-20-083, Yes Through Coolant (Yes/No)
