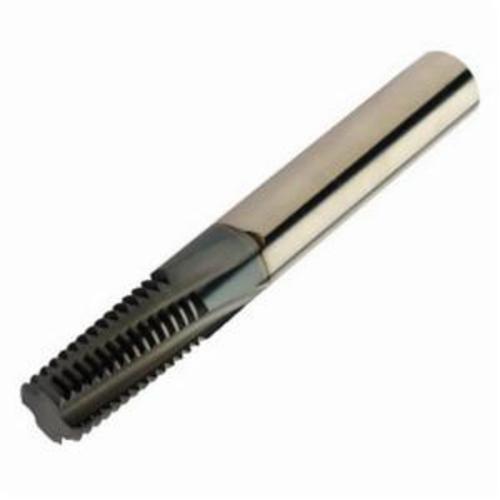

Sandvik Coromant 5743871 CoroMill® Plura Right Hand Cutting Threading End Mill, 1/4-28 UNF Thread, 2.244 in OAL, 3 Flutes, 0.236 in Dia Shank
Orig$372.97
Sale$223.78
Item #SVK31683
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #5743871
Ship Weight (lbs.)0.2
UnitEA
Items Left in Stock7
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • 1630 manufacturer grade
• PVD finish
• Without clamping features machine side adaptive interface
• Solid carbide body
• Coromant basic standard group
• 2.6 mm Dia core at face
• Axial concentric coolant entry
• 20 bar coolant
• Axial concentric coolant exit
• EFW feed direction code
• 10 deg right hand helix flute
• 13.61 mm L usable
• 21 mm overhang
• H6 connection diameter tolerance
• UN60 thread form
K, M, N, P, S material grade
• R217.3xC..AC..M(UNF) tool style
• 80000 r/min
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
• Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN, it is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys
Description
Sandvik Coromant Threading End Mill, Right Hand Cutting, Series: CoroMill® Plura, 1/4-28 Thread, UNF Thread, 0.1889 in Diameter Cutting, 0.535 in Length of Cut, 2.244 in Overall Length, 3 Flutes, Cylindrical Shank, 0.236 in Shank Diameter, Solid Carbide, TiAlN Coated
