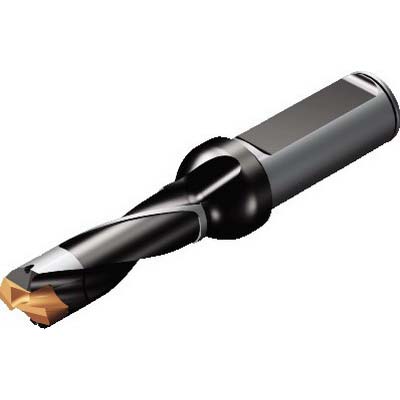

Sandvik Coromant 6035745 CoroDrill® 870 Exchangeable Tip Drill, 19 to 19.99 mm Drill, 142 mm OAL, 3.166XD Drill Depth by Dia Ratio, 25.4 mm Dia Shank
Orig$490.32
Sale$294.19
Item #SAN 6035745
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #6035745
Ship Weight (lbs.)0.66
UnitEA
Items Left in Stock9
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • 870..LX-3 tool style
• 0 deg body half taper
• 20 life cycle state
• Cylindrical/clamping shank
• Axial concentric entry
• 10 bar coolant
• Integrated screw clamping
• Axial inclined exit
• 19.9 mm Dia cutting
• 25.4 mm Dia connection
• 20 deg right hand flute
• 66 mm L body
• 82.98 mm maximum overhang
• 3.02 mm L point
• 30000 r/min
H9 achievable hole tolerance
• 23.4 mm H shank
• EFW feed direction
• 19 - 19.99 mm drill
• 1 in Dia shank
Description
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, 19 to 19.99 mm Drill, Cylindrical with Flat Shank, 25.4 mm Shank Diameter, 56 mm Shank Length, 66 mm Flute Length, 142 mm Overall Length, 63.01 mm Maximum Drill Depth, 3.166XD Drill Depth by Diameter Ratio, Yes Through Coolant
