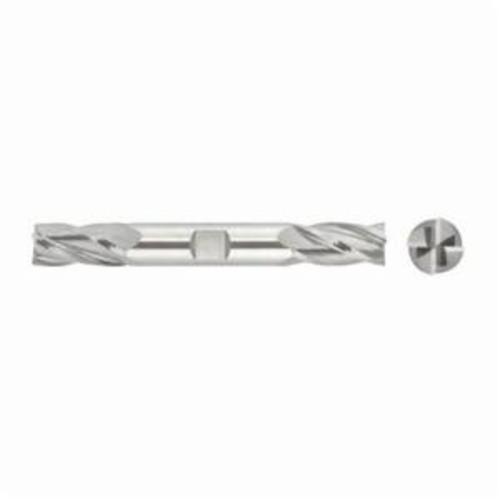

Niagara Cutter N85644 CD430 Center Cutting Double End Medium Length Square End End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, TiAlN Coated
Price$51.38
Item #NIA85644
BrandNiagara Cutter
ManufacturerSeco Tools
Mfr. Model #N85644
Ship Weight (lbs.)0.25
UnitEA
AvailabilityIn-Stock With Limited Quantity
Quantity
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
• 90 deg cutting edge
• 30 deg axial rake
• 10 deg radial rake
• 15 deg neck
• F - Step tool shape
Description
Niagara Cutter End Mill, Center Cutting Double End Medium Length Square End, Series: CD430, 1/4 in Diameter Cutter, 3-3/8 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: CD430-0.250-XF3-S.3-Z4, ISO Code: CD430.250XF3S.3Z4, Solid Carbide, TiAlN Coated
