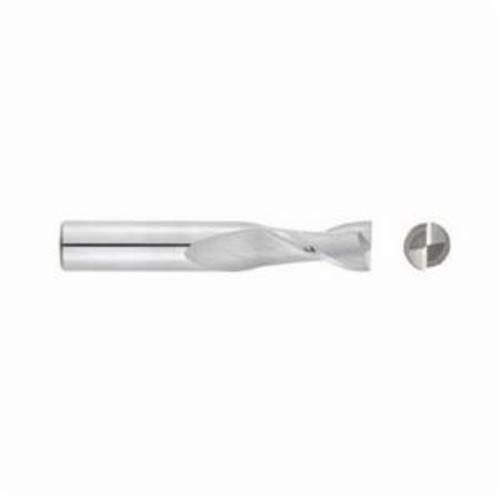

Niagara Cutter N85363 C230 Center Cutting Short Length Single End Square End End Mill, 7/16 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 7/16 in Dia Shank, 2-3/4 in OAL, TiAlN Coated
Orig$50.95
Sale$23.86
Item #NIA85363
BrandNiagara Cutter
ManufacturerSeco Tools
Mfr. Model #N85363
Ship Weight (lbs.)1
UnitEA
Items Left in Stock3
AvailabilityIn-Stock With Limited Quantity
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
• 90 deg cutting edge
• 1.771 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• Square nose end mills create sharp, unrounded cuts
• Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
• Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
• D - Cylindrical tool shape
Description
Niagara Cutter End Mill, Center Cutting Short Length Single End Square End, Series: C230, 7/16 in Diameter Cutter, 2-3/4 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 7/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C230-0.438-D2-S.0-Z2, ISO Code: C230.438D2S.0Z2, Solid Carbide, TiAlN Coated
