* Image may not reflect actual product

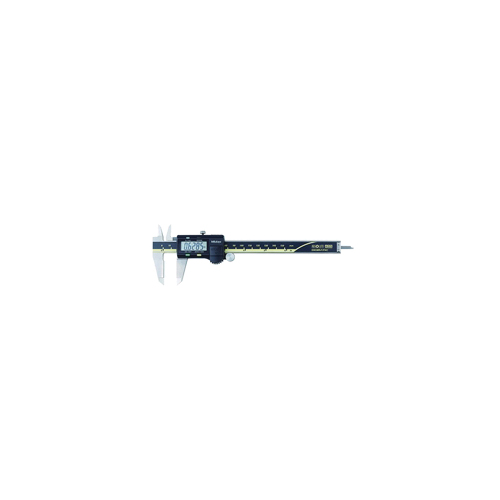

Mitutoyo 500-196-30 500 Absolute® AOS Standard Digimatic Caliper, 0 to 6 in, Graduations 0.0005 in, Stainless Steel


Item #MTI 500-196-30


ManufacturerMitutoyo America Corporation

Mfr. Model #500-196-30

Ship Weight (lbs.)2.1



Login to see discount pricing.
Not Registered? Create an
Order by 4pm to receive next day

Product Features

  • • Now equipped with the same AOS induction type encoder used in top-of-the-line ABS coolant proof calipers
    • Caliper can be used without concern for contamination on the scale face during measurement
    • Detection signal is not affected by dirt on surface of a scale
    • The slider provides smooth, stable and comfortable operation
    • 9 mm character height
    • The ABS scale requires no origin setting after power-on and also has no limit to response speed
    • The zero/ABS key allows the display to be zero set at any slider position along the scale for incremental comparison measurement
    • Switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point)
    • 0.0005 in repeatability
    • 938882 SR44 battery
    • Battery Life - Approximately 3.5 years under normal use
    • Origin-set, zero setting, data output and inch/mm conversion functions
    • Low voltage and counting value composition error alarm functions
    • 233 mm L
    • Without SPC data output
