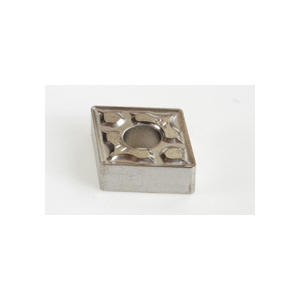

Iscar 5594061 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-TF IC908, CNMG Insert, Material Grade: H, K, M, P, S, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturer's Grade: IC908
Orig$12.75
Sale$8.55
Item #ISC 5594061
BrandIscar
ManufacturerIscar
Mfr. Model #5594061
Ship Weight (lbs.)1
UnitEA
Items Left in Stock5
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • Positive rake angle that varies along the edge to negative in order to prevent chipping
• Special design reduces cratering
• Chipbreaker on both sides with hole
Description
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturer's Grade: IC908, ANSI Code: CNMG 432-TF IC908, ISO Code: CNMG 120408-TF IC908, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
