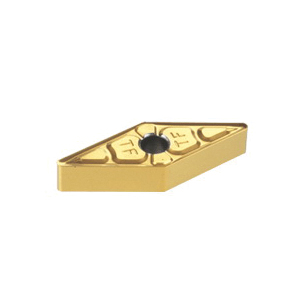

Iscar 5508508 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 332-TF IC807, VNMG Insert, Material Grade: H, K, M, P, S, 332 Insert, Rhombic Shape, 16 Seat, Positive Rake, Carbide, Manufacturer's Grade: IC807
Orig$16.23
Sale$9.74
Item #ISC 5508508
BrandIscar
ManufacturerIscar
Mfr. Model #5508508
Ship Weight (lbs.)0.1
UnitEA
Items Left in Stock18
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • Positive rake angle that varies along the edge to negative in order to prevent chipping
• Special design reduces cratering
• Chipbreaker on both sides with hole
Description
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: IC807, ANSI Code: VNMG 332-TF IC807, ISO Code: VNMG 160408-TF IC807, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
