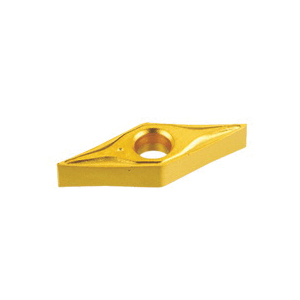

Iscar 5508147 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 331-NF IC8250, VNMG Insert, Material Grade: M, P, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturer's Grade: IC8250
Orig$18.15
Sale$10.89
Item #ISC 5508147
BrandIscar
ManufacturerIscar
Mfr. Model #5508147
Ship Weight (lbs.)0.05
UnitEA
Items Left in Stock18
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • Low cutting forces due to very sharp edge and positive rake
• Chipbreaker on both sides, with hole
Description
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 331 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: IC8250, ANSI Code: VNMG 331-NF IC8250, ISO Code: VNMG 160404-NF IC8250, 35 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
