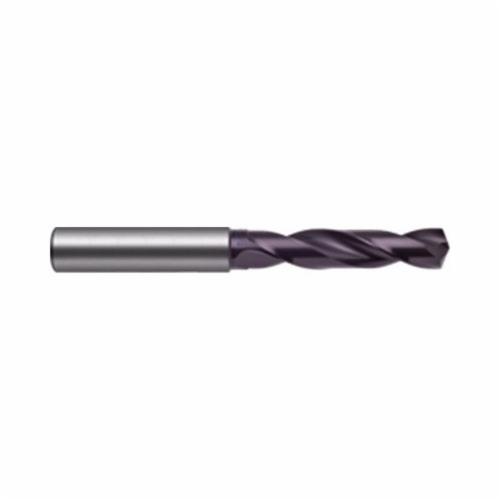

Guhring 9055140086000 RT100U/5514 High Penetration High Performance Stub Length Screw Machine Drill, 8.6 mm Drill - Metric, 0.3386 in Drill - Decimal Inch, DK460UF Carbide, FIREX® Coated
Orig$110.70
Sale$66.42
Item #GUH9055140086000
BrandGuhring
ManufacturerGuhring
Mfr. Model #9055140086000
Ship Weight (lbs.)0.5
UnitEA
Items Left in Stock2
AvailabilityIn-Stock With Limited Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • Unique flute profile and point geometry eliminates the need for peck cycles
• RT 100 U self-centering 140 deg U point eliminates need for spot drilling
• FIREX® coated for added heat and abrasion resistance
• Optimized cutting edge geometry
• Special web thinning
• Special point grind
• NanoFIRE coating
• Very good self-centering characteristics
• Highest cutting rates
• Short chips
• Alignment accurate holes
• Powerful machines
• Chatter-free, defined feed
• Maximum concentration error of clamped
Description
Guhring Screw Machine Drill, High Penetration High Performance Stub Length, Series: RT100U/5514, Metric, 8.6 mm Drill - Metric, 0.3386 in Drill - Decimal Inch, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 47 mm Flute Length, 10 mm Shank, Straight Shank, 140 deg Point, SU/Self-Centering Point, Right Hand Cutting Direction, DK460UF Carbide Cutting Edge, DK460UF Carbide, FIREX® Coated, Applicable Materials: Aluminum, Alloyed Steel, Free Cutting Steel, Tool Steel, Stainless Steel, Titanium and Titanium Alloy, Cast Iron, Brass, Bronze, Copper, Magnesium, Special Alloy and Hardened Steel
